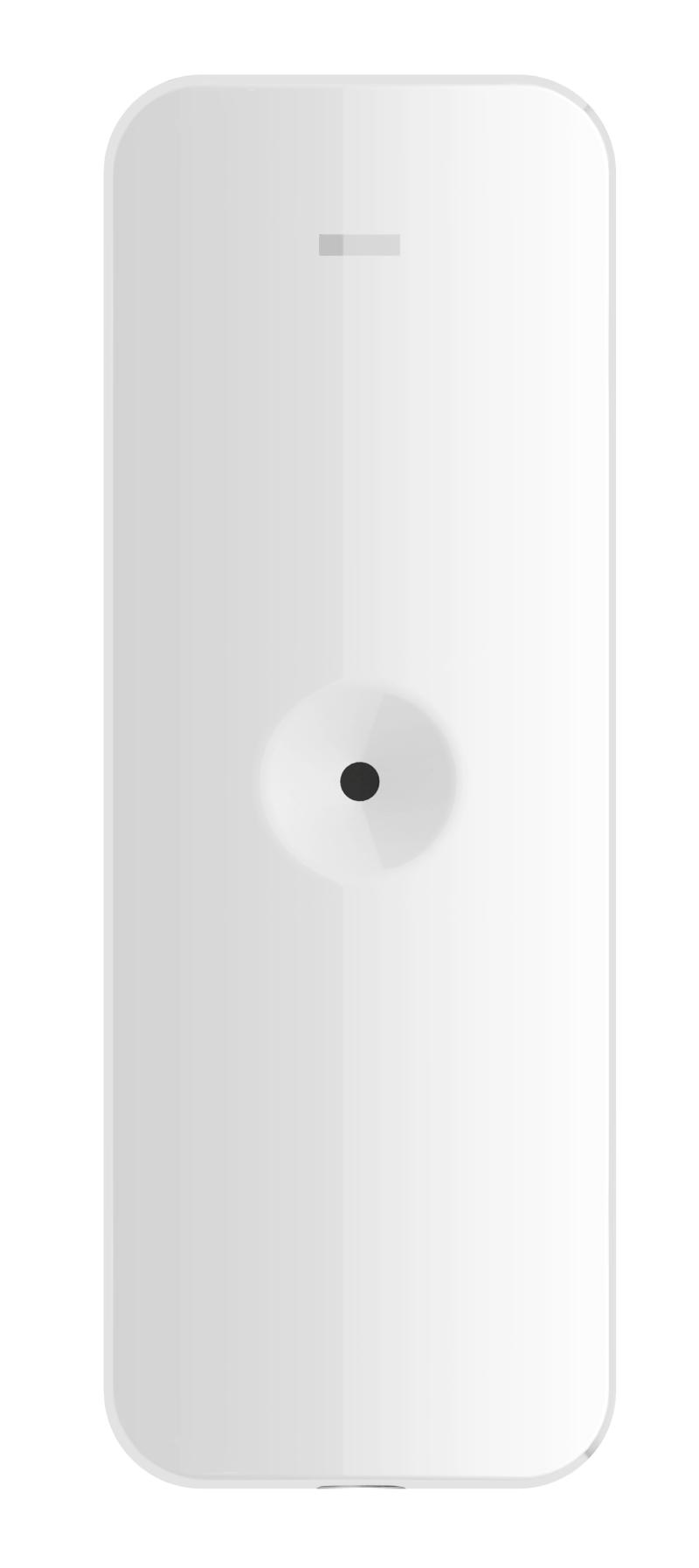

DS-PDBG8-EG2-WE

Détecteur de bris de verre sans fil

• High quality Omni-directional microphone sensor
• Fully remote configurable through APP
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission

• Specification

• • Detection Performance
  • Detection MethodAcoustic Sensor
  • Detection Range8m
  • Detection Angle120°
  • Sensitivity2m;4m;6m;8m
  • Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
  • Glass Thickness2.4 mm to 6.4 mm
  • Glass Size0.3 m × 0.3 m to 3 m × 3 m
  • Feature
  • Digital ProcessingSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Interface
  • Alarm InputNormally Closed;Normally Open;Impulse Count
  • Power SwitchPower up uenrolling
  • LED IndicatorBlue (alarm)
  • Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency868MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1.6Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • AlimentationBattery powered
  • Battery TypeCR123A × 2
  • Typical Voltage3V
  • Standard Battery Life

    Up to 5 years (standby time)

  • General
  • Operation Temperature-10°C to 55°C (14°F to 131°F)
  • Storage Temperature-20°C to 60°C (-4°F to 140°F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)38.8 mm × 107.0 mm × 24.5 mm
  • 83g
  • Mounting MethodWall;Ceiling
  • Scénario d’utilisationIndoor
  •
